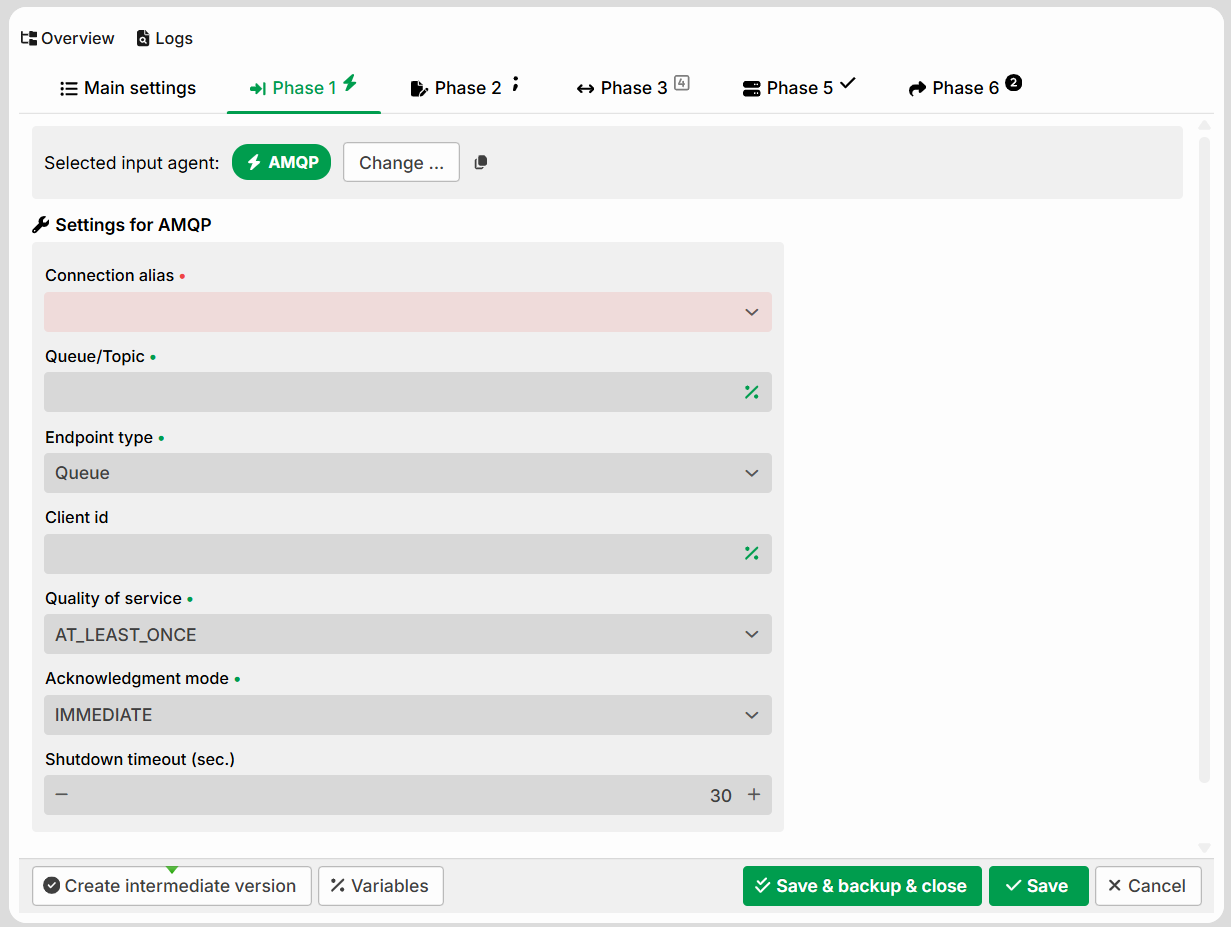

AMQP (input agent)

Connection alias

Selection of an alias. Required field. Currently, only AMQP 1.0 aliases are available.

Queue/Topic

Name of the queue or topic to be queried. Required field. Some brokers require an additional prefix, for example, queue: or topic: for SAP Event Mesh.

Endpoint type

Determines whether a Queue or a Topic is queried as the source. Required field.

Client ID

Optional. Name of the client. If the field is left empty, an ID is generated automatically. A client ID is mandatory for a durable topic subscription. In IMMEDIATE mode, the client ID also controls whether queue consumers compete: a set client ID creates its own subscriber thread, so that the consumers of a queue compete for the messages.

Durable subscription

Only visible when Endpoint type = Topic. Enables a durable topic subscription. Requires a client ID as well as a name for the subscription.

Subscription name

Name of the durable subscription. Only visible when Durable subscription is enabled.

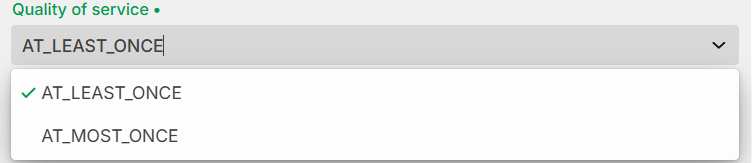

Quality of service

Determines when a received message is acknowledged (see section Quality of service). Required field.

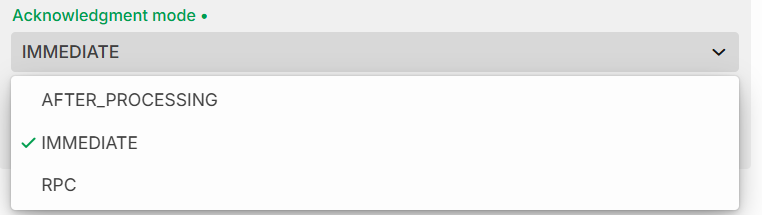

Acknowledgment mode

Determines the timing and processing mode of the acknowledgment (see section Acknowledgment mode). Required field.

Shutdown Timeout (sec.)

Only relevant for the synchronous acknowledgment modes (AFTER_PROCESSING, RPC). If the subscriber thread needs to be restarted, the system first waits for the configured duration for the running job to complete. After this period elapses, the thread is restarted and the message is not acknowledged—the running job continues, but the unacknowledged message is redelivered by the broker (duplicate processing). Default: 30.

Tip

Set the timeout slightly higher than the maximum expected execution time of the profile to avoid duplicate processing.

AT_MOST_ONCE

A received message is acknowledged immediately. If an error occurs before the upload to the system, the message may be lost.

AT_LEAST_ONCE

A received message is only acknowledged after it has been uploaded to the system. If an error occurs between the upload and the acknowledgment, a message may be processed twice. With RPC, an error during acknowledgment after a successful Job – for which the RPC response has already been sent – results in redelivery: the job runs again and generates a second response.

IMMEDIATE

Asynchronous subscription. Messages are acknowledged after the upload to the system was successful. Profiles with identical settings are automatically grouped into the same subscriber thread (1:n) – all these profiles receive the message.

 CAUTION:  Setting a Client ID creates a new subscriber thread. For queues, consumers then compete with each other (see Client ID).

AFTER_PROCESSING

The message is only acknowledged after the associated job has completed successfully. Requires the quality of service AT_LEAST_ONCE. A profile with this mode is always assigned its own subscriber thread (1:1), since this is a synchronous process.

RPC

Synchronous process (waits until a response has been sent) and therefore also receives its own subscriber thread (1:1).
